Wireless Portable Barcode Scanner Lightweight Pocket Bluetooth+2.4GHz Mini Barcode Reader
Product Description:
Luckydoor K-80 is super mini Lightweight portable pocket 2D barcode scanner. It is unique, lightweight and compact appearance shape design, and equipped 32g/1.13oz weight making it more portable, convenient to take and use. it is used for POS System, Supermarket, Pharmacy, Warehouse. Designed with Bluetooth 2.4G dongle wireless and USB wired 3-in-1 connection modes easily compatible with more devices and systems. Equipped powerful bar code decoding capabilities, long transmission range and long using time making it more competitive. Barcode scanner come with 16M storagecapacity.Safe and reliable, it can store morethan 50000 codes on storage working mode. Ideal for organizing and cataloging your barcodes, no matter if you run a book store, online store, a sales shop, or work in a warehouse.
Product Features:
1. Large capacity
Barcode scanner come with 16M storagecapacity.Safe and reliable, it can store morethan 50000 codes on storage working mode.
2. Upload / Storage Mode
Storage Upload Mode: Store up to 50000 barcodes in the 16MB memory of the scanner and upload to yourdevice when you need them.
Instant Upload Mode: Synchronously upload data to your device when scanning barcodes.
3. Long Transmission Range
Compatible with Blue tooth Function10 m/ 33 ft under obstacles environmentMax 50m /164ft in barrier free environment
Connected via 2.4GHz Wireless30m/ 99 ft under in obstacles environmentMax 100m /330ft in barrier free environment

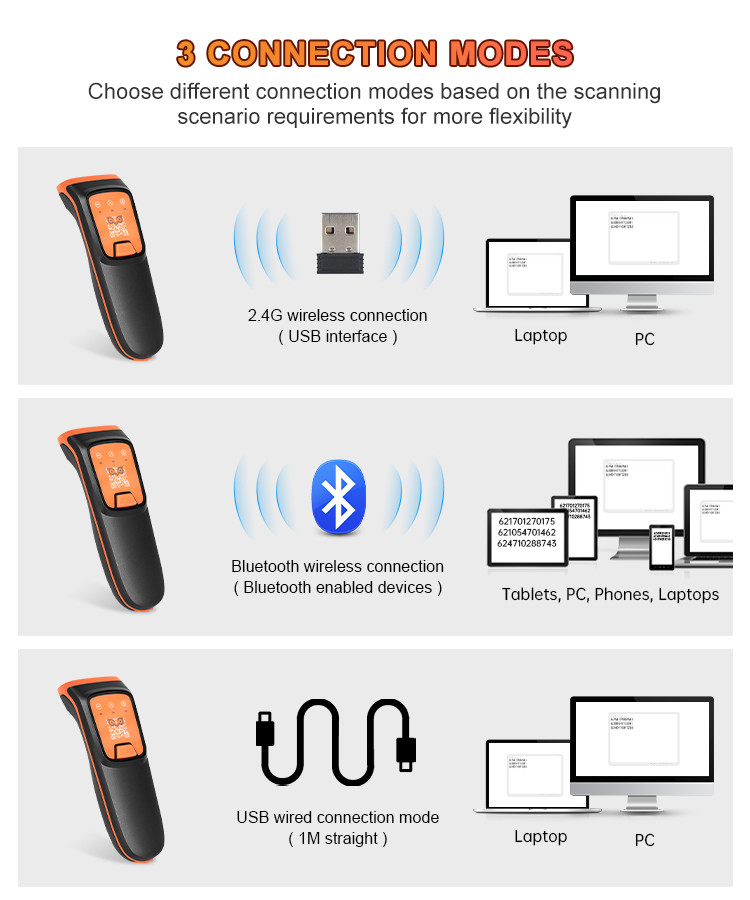

4. Support wired and wireless modes
Product Application:
Library
Manufacture
Warehouse
Retail
Logistics
Medication
Product Specification:
| Light Sources: | 617nm LED Aimer, White LED |
| Supported Symbologies: | 1D: Code 128EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, ITF-25(Interleaved 2 0f 5), Code39, Code93, Code32, Codabar, IATA 25, Matrix 2 of 5, Industrial 25, MSI Plessey. |
| 2D: QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec. |
| Scan Type: | Image scan |
| Resolution: | 640*480 |
| Field of View: | 48°(H)X36°(V) |
| Scan Mode: | Manual/Continuous/Automatic Induction Scanning |
| Precision: | ≥5mil |
| Scan Angle: | Yaw±45°, Rotation 360°, Pitch±45° |
| Contrast: | ≥20% |
| Depth of scan field: | EAN-13(13mil): 4-25cm; |
| Code39 (4mil): 4-10cm; |
| QR code (15mil): 2-170cm |
| Error Rate: | 1/5million |
| Interface: | Receiver:USB-HID; Bluetooth: HID, BLE, SPP |
| Pairing Method: | Pair by barcode |
| Wireless Transmission Distance: | 50-100meters (open) |
| Wireless communication: | Pairing dedicated receiver: 2.4G communication; |
| Pairing Mobile Bluetooth Devices: Dual Mode Bluetooth |
| Pairing Mode: | One-to-one: one scanner paired with one receiver A scanner paired with a bluetooth mobile device |
| Receiving End: | Dedicated Bluetooth U disk receiver, Android/IOS mobile device |
| Storage Mode: | Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000 characters. |
| Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters. |
| Dimension | 46.08*38.51*128.24mm |
| Material | ABS+PC |
| Cable | 1M straight |
| Operating Temperature | -20℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Humidity | 5%~95%RH (Non-condensing) |
| Drop Resistance | Withstands multiple 1.5m drops to concrete |
| Voltage: | DC 5V±5% |
| Lithium battery: | 1000mA |
| Charging Time: | 3-3.5h |
| Standby Current: | 0mA(Standby is to cut off battery power) |
| Working Current: | ≥200mA when scanning the code |
| ≥26mA when working without scanning code |
| Continuous Working Hours: | Continuous work for 5 hours; |
| Intermittent work for more than 9 hours |
| Charging Method: | TYPE-C charging cable, plug-in direct charging |
Product Pictures:
Package Including:
1x Luckydoor 2D Barcode Scanner
1x 2.4G USB Dongle
1x USB Cable
1x Manual
